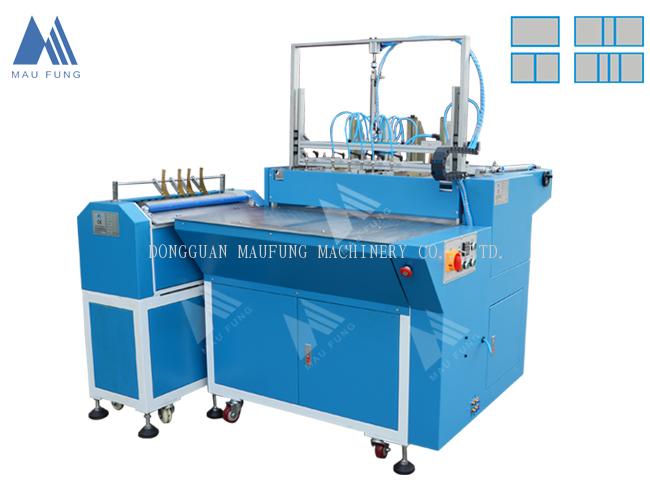

MF-SCM500A Semi Auto Case Maker(Semi Auto Covering Machine)

MF-SCM500A SEMI AUTO CASE MAKER


MAIN FEATURES:

This machine is mainly applied in covering and pressing various notebooks, photo books (photo album), folders, certificates, hardcover books. This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of post-press, especially the digital post-press.

●Adopting PLC operating system
●Use hot glue (animal glue / Jelly glue), cold glue
●Replace products, fast adjustment speed. The thickness of the cardboard could adjusted automatically
●Automatic and pneumatic feeder position by pressing the foot switch
●Adjust the size by rotating the handle wheel
●Light Tube inside the working table makes the position more accurate.


PARAMETERS:

Model

MF-SCM500A

Power Supply

380V/220V, 50HZ

Mainframe Power

5.2kw

Work Speed

1-3PCS/minute

Paperboard Thickness

1-4mm

Hard Case Spine Width(Min)

9mm

Open Book Case Size(Max)

780x430mm

Open Book Case Size(Min)

140x140mm

Machine Dimensions(L×W×H)

1780×1620×1400mm

Paper Thickness

80-200g

Machine Weight

550kg

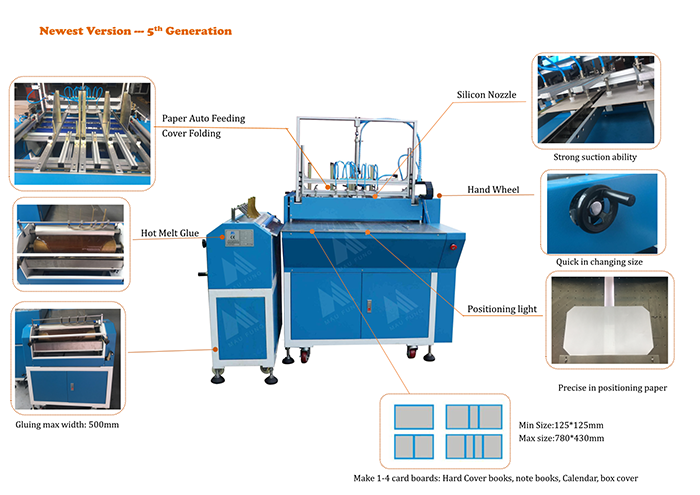

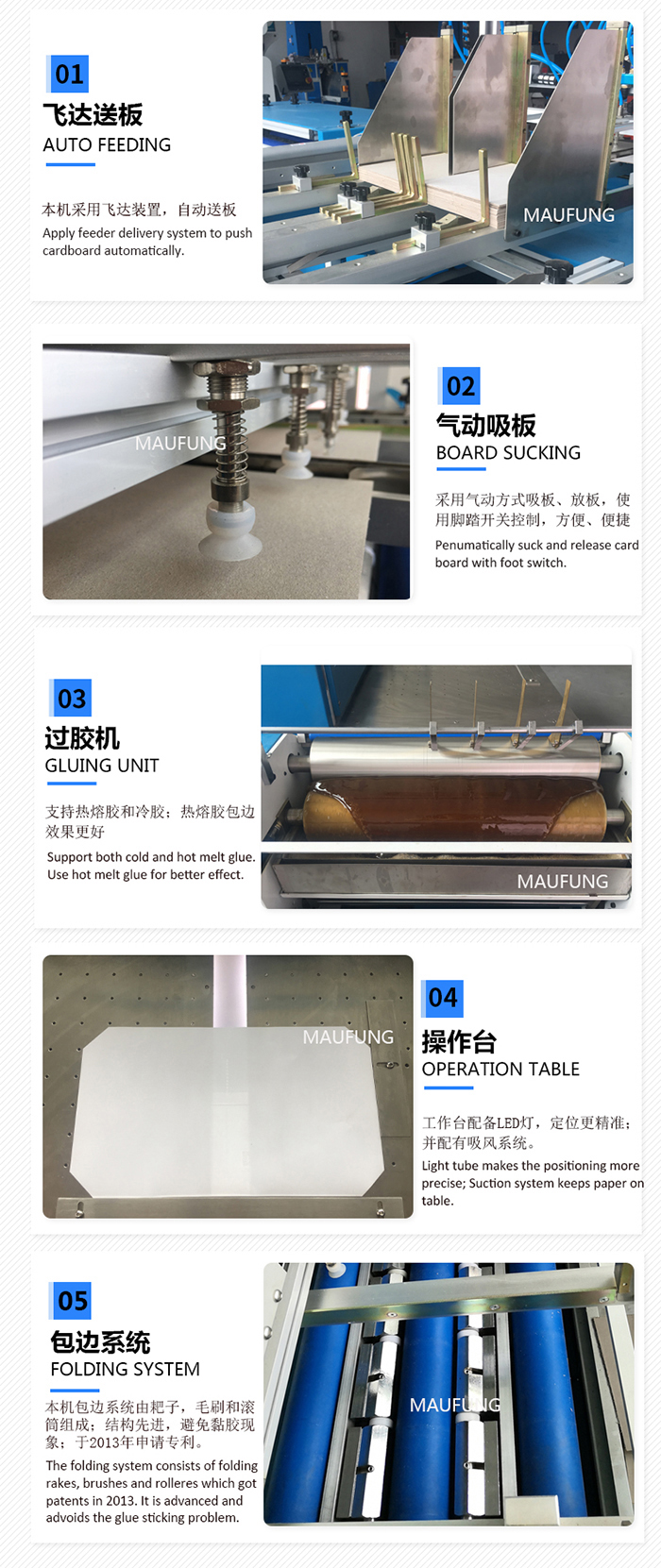

​DETAILS:
