Adjustable Speed: Speed range 0-1000 books/hour (17 books/minute). The parameter is measured by the common pause time.
Adjustable pause time: The pause time when the machine goes up to the highest point is controlled by the outside time relay. The user can adjust the time at any time.
Automatic power off function: The machine will make the mainframe motor stop rotating without operation within 10 minutes. It can improve the operator safety factor and the machine working life uttermost.
Importing Variable-frequency Drive: We apply the famous Taiwan variable-frequency drive brand.
Convenient for customer to install the electric: Because it is applied by the variable-frequency drive controller, the machine rotation direction is right, no matter what’s the three -phase electric phase sequence. The machine breakdown and the damage by the reverse power phase sequence and the opposite machine rotation can be removed completely.
Parameters:

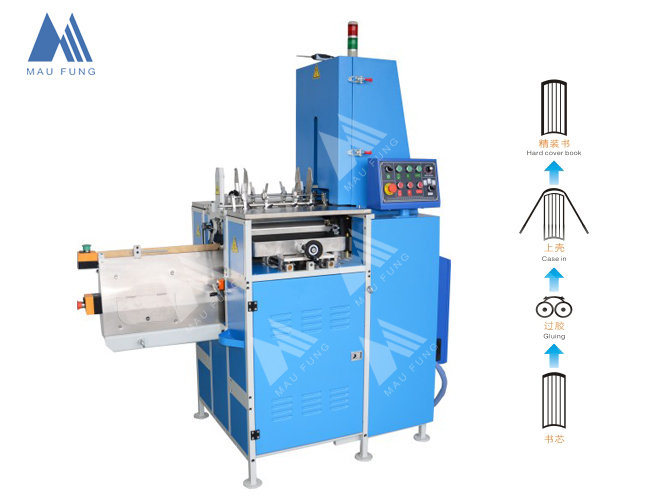

Model MF-SKJ380AS Power Supply 380V/220V, 50HZ Mainframe power 1.5kw Work Speed 0-17PCS/minute (Adjustable Speed) The Book Block Thickness 4-60mm Hard Case Chipboard Size(Max) 360x260mm Hard Case Chipboard Size(Min) 90x60mm Machine Dimensions(L×W×H) 1820×930×2100mm Machine Weight 540kg
Versions:
Application:
