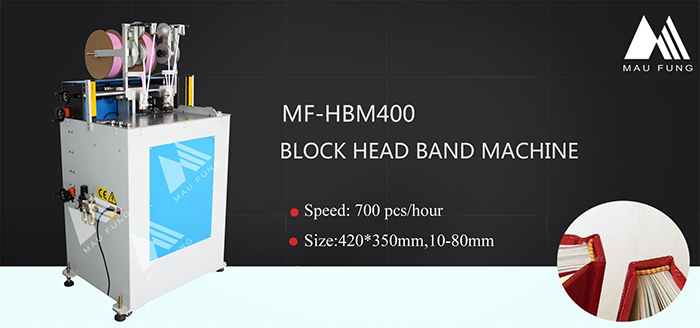

Book Block Head Band Machine is a flexible and compact machine for the application of head and tail band on round and square book blocks. It is the perfect solution for medium and small book binding companies.The head band is joined to the glue strip before being applied to the book spine. The machine does not require cleaning at the end of the production.
Application:
Technical Parameters:
Model | MF-HBM420 |
Power Supply | 220V, 1 Phase, 50HZ |
Mainframe Power | 1.5KW |
Air Compressor | 6Bar |
Machine Speed | 11 PCS/ Minute |
Book Block Thickness | 10-80mm |
Book Block Size(Max) | 350x420mm |
Book Block Size(Min) | 100x100mm |
Machine Dimensions(L×W×H) | 700×850×1550mm |
Machine Weight | 270kg |
