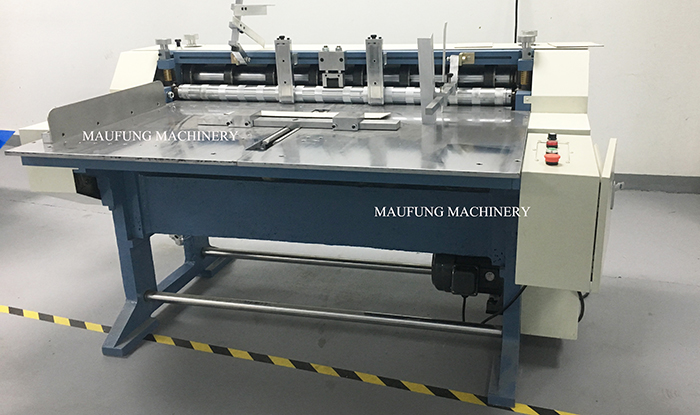

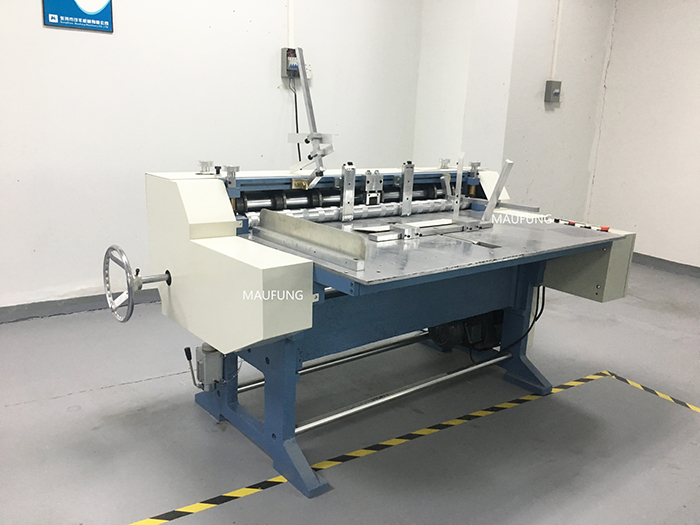

Paperboard Slitter Machine is the special machine for cutting heavy book board, board and cardboard which is developed by our company. It is a ideal equipment for case book cover, filled board, color carton and hard exercise books. This machine possesses the following characters, such as reasonable structure, simple operation, smooth cutting edge, high accuracy and high efficiency.
Model | MF-FQ1350 |
The Biggest Size of Cutting Paperboard | 1250 x 1000 mm |
The Smallest Size of Cutting Paperboard | 100 x 100 mm |
The Biggest Working Width | 1250 mm |
The Smallest Working Width | 50 mm |
Cutting Thickness | 1 - 5 mm |
Continuous Cutting Speed | 68 m/min |
Automatic Bringing Paper Speed | 30 - 100 sheets/min |

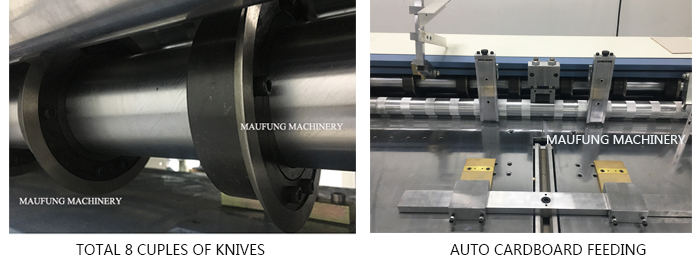

The Maximum Cutting Knife Couples | 8 Couples |
Motor Power | 1.5 kw |
Machine Dimensions(L×W×H) | 2305 x 1935 x 1170 mm |
Machine Weight | 1050 kg |
