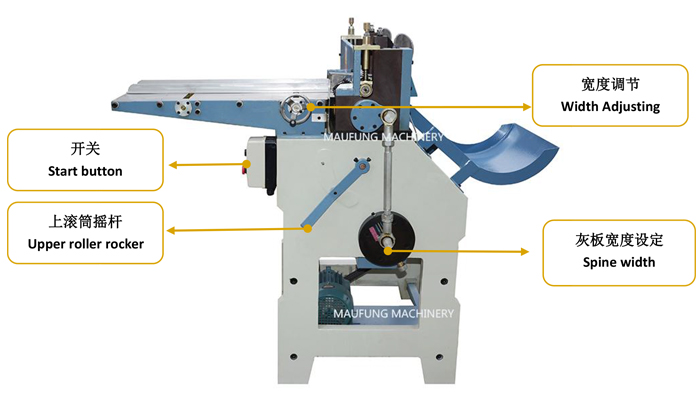

MF-65 Cardboard Cutting Machine

MF-65 SPINE CUTTING MACHINE


Description:

It is the special equipment for binding hard-cover books and it is used to cutting the big cardboard to small piece which is the spine of book cases. It has the advantages of reasonable structure, simple operation, smooth trim edge, high precision and high efficiency.

Single strip papers continue to be transported and cut with high accuracy and little wasting papers, which also avoid low efficiency by slicing papers.

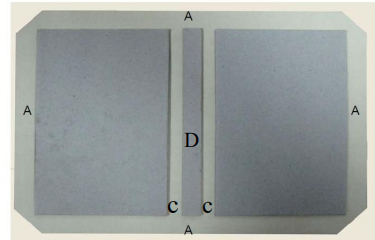

                                          Spine: D


Parameters:

Model

MF-65

Cutting Length

450mm

Slitting Width

3 - 50mm

Cutting Thickness

0.1 - 5mm

Cutting Speed

200Times/min

Power

1.5KW

Machine Dimensions(L×W×H)

1127x1002 x1360 mm

Machine Weight

500kg
