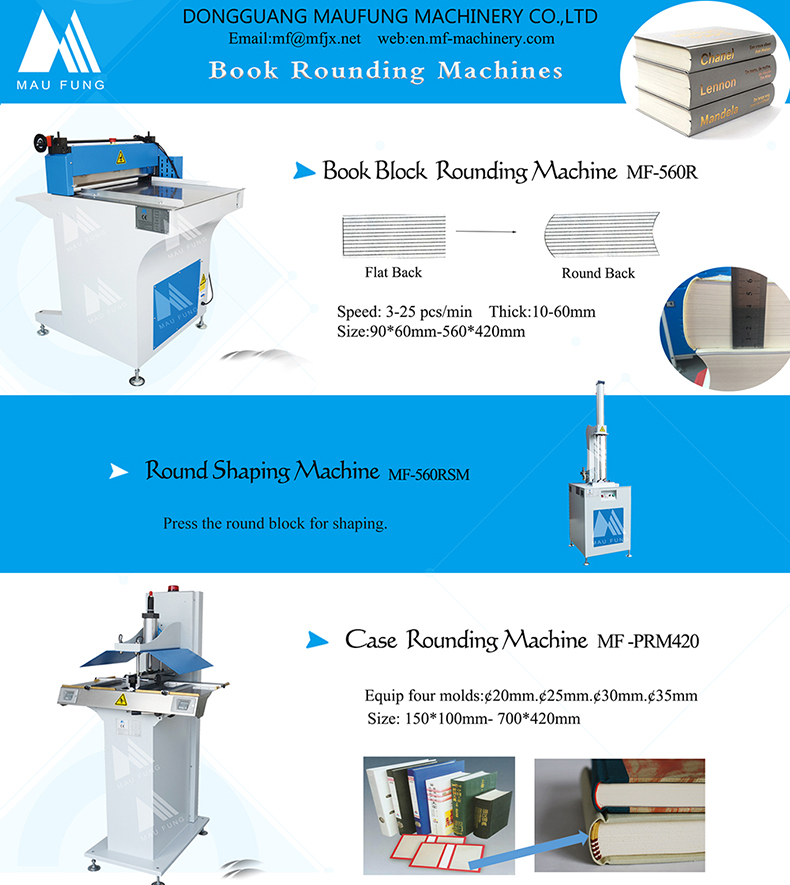

Case Pressure Rounding Machine MF-PRM420

MF-PRM420 CASE PRESSURE ROUNDING MACHINE

Description:

Case pressure rounding machine is an equipment which makes the middle part of the finished case into round shape. It is widely used in hardcover books and notebooks with rounding spine. It is worked under air cylinder. Adjust the cylinder stroke, pressure and time to meet the demands of different hard cases.This machine adopts pneumatic principle. The round back mold has heating function and there are a variety of molds for different thickness of spine. It is advanced in design and quick for users to exchange different molds. With the height, pressure, time and temperature adjustable characteristics, users can adjust the machine to make the best result for different kinds of cases.


Parameters:

Model

MF-PRM420

Power Supply

220V, 50HZ

Case Rounding Size(max)

700*420mm

Case Rounding size(Min)

150*100mm

Rounding Temperature

60-150℃

Four free molds

¢20mm.¢25mm.¢30mm.¢35mm

Air Pressure

4-6bar

Power

1.1KW

Machine Weight

250KG

Machine Dimensions(L×W×H)

820*800*1630mm
