Application:

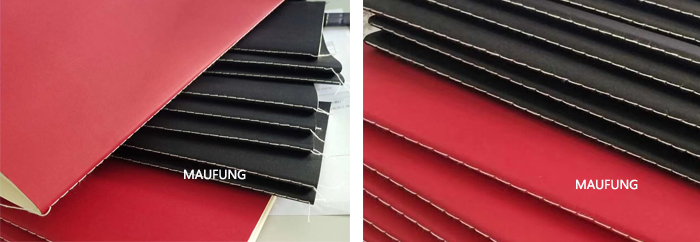

This model is mainly used for notebook.
Main Features:
1. The working speed is 500-1000 PCS/hour
2. The distance of the sewing could be adjusted.
3. This machine could apply in notebooks, brochure and exercise books.
4. This machine use high sensitivity FOS automatic sewing machine, no need the foot switch.
Technical Parameters:
Model | MF-SFM470B |
Power Supply | 380V 50Hz/ 60Hz/ 5.2kW |
Air Compressor | 1.5KW |
Air Pressure | 6-8Pa |
Max Paper Size | 600*470mm |
Binding thickness | Max 3mm (customed 5mm) |
Work Speed（n/hour） | 500-1000 (Times/Hour) |
Machine Dimensions(L×W×H) | 2830×1850×1580mm |
Machine Weight | 1000kg |
