Machine Introduction

The page matching machine is designed with modularity and is equipped with a cyclic stacking machine. It can easily and quickly stack the prepared products in a neat and orderly manner according to the set quantity. It can be transported to a flexible locking line of one to many through a connecting line, or used separately for page matching. It has flexible switching of multifunctional applications.

Main functions

●Adopting Japanese Keyence PLC control system, variable frequency speed regulation, human-machine interactive operation interface, and expandable docking with SM system.

·You can use pliers to separate book stickers, single sheets, cards, and books without adjustment.

·The controllable frequency blowing function on the book post station ensures that the page matching machine can operate stably on single sheets of paper with a weight of 45g/m ² or more.

Unique vise style page matching, suitable for single page, multi fold, card, books below 8mm, and customized books, achieving diversified page matching, card matching, and book matching.

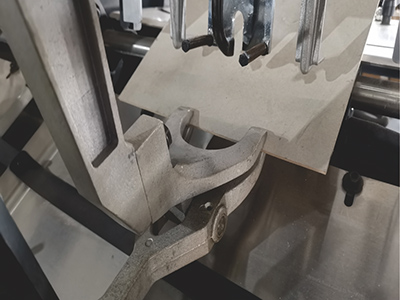

Tiger clamp type double point gripper, there is no excess friction when separating paper, and the paper is not scratched.

One click microcomputer thickness measurement with image misalignment function (optional) ensures accurate page matching.

● Automatic transfer function (optional), with the function of completing one book and ending one book, saving transfer time.

Multi stage units can individually stop one or more unused units, reducing machine wear and saving energy consumption. High speed circulating stacker, neat book collection, saving labor.

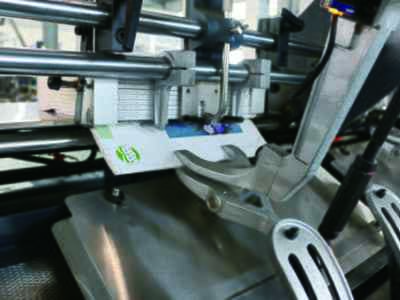

Comes with cards and adhesive paper

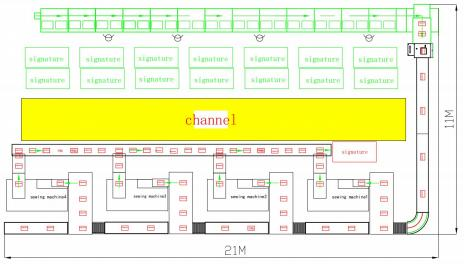

Page Application Case

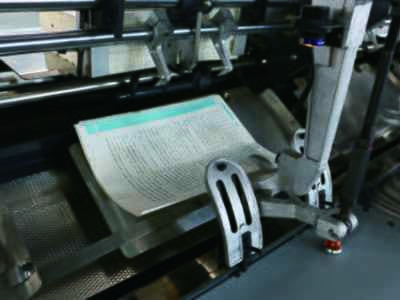

Examples of Book Matching Applications

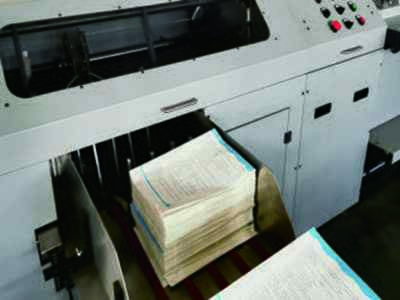

Automatic book stacking unit

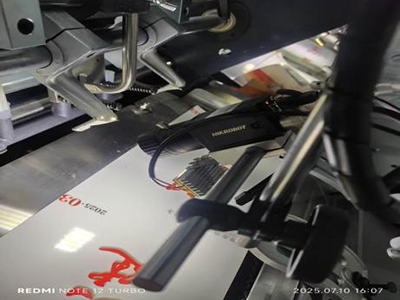

Mobile camera (one per site): The image captured from the paper will be displayed on the image detection computer.

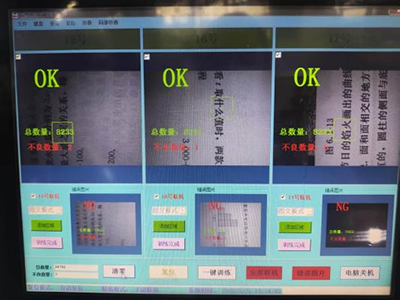

Image detection computer (equipped with one computer every three workstations): This computer displays paper images and sets them as sample paper images. If the subsequent paper image is inconsistent with the sample image, an error will occur and an alarm will be triggered to stop the machine.

Technical Specifications
